M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve

Name: M04X07 Vent Valve 03Nm Vented Ball Automatic Air Valve
Brand: XINIXA
Price: 1.5 USD

Quality M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve for sale

MOQ : 5000PCS

Brand Name : XINIXA

Certification : ISO9001

Place of Origin : CHINA

Price : 1.5USD/PCS

Payment Terms : T/T

Supply Ability : 5000000 PCS/ DAY

Delivery Time : 5-8 working days

Packaging Details : Corrugated Carton / Box

Model Number : M04X0.7 Vent Valve

Part name/ Product model : Metal threaded waterproof air permeable valve

P/N/ code : CJ04-N005

Thread specifications : M04X0.7

Length of thread : 5.0mm

Breathability & Water resistance : ☑ M002≥60ml/min, IP67>10Kpa (about equal to 1.0 m water pressure)

Working temperature : -40℃ ~125℃

Salt atmosphere : 48 hours (IEC 68-2-11)

Torsion : 0.3 ±0.1Nm

Contact Now

CJ04-N005

Part name/ Product model	Metal threaded waterproof air permeable valve
Customer / Customer name
P/N/ code	CJ04-N005
Customer P/N / Customer part number

product appearance

Thread specifications	M04X0.7
Length of thread	5.0mm
Material quality	Stainless steel ☑ aluminum alloy Copper Other Please note:
Colour	☑Natural color Oxidized black Nickel plating Other please note:
Gasket ring	Black O-ring Original ☑color O-ring Black flat washer Original color flat washer
Logo	Logo No logo

Product performance characteristics

Breathability & Water resistance	☑ M002≥60ml/min, IP67>10Kpa (about equal to 1.0 m water pressure)
Working temperature	-40℃ ~125℃
Salt atmosphere	48 hours (IEC 68-2-11)
Torsion	0.3 ±0.1Nm

Design and dimensions

Product display

M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve

Design dimension

Installation suggestions

Recommended size

M04X0.7 Vent Valve 0.3Nm Vented Ball Automatic Air Valve

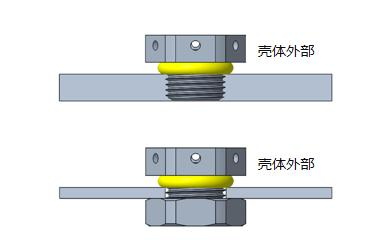

Installation diagram
